What is ERG Mode?[]
Smart trainers can run in different modes which determine how much resistance they apply while you ride. The two most common modes are Erg and Sim.
Sim mode is simulator mode. This is the mode used in all Zwift activities other than workouts. In Sim mode, the controlling software (Zwift) sends parameters like rider weight, air density, Crr, gradient, and wattage to your trainer. The smart trainer then tries to replicate the “feel” of that virtual ride environment through its resistance on your drivetrain.
Erg mode is completely different. In Erg mode, your trainer’s job is to make you hold a particular wattage. “Erg” comes from Greek “Ergasía” which means “work”. Erg mode is literally forcing you to work at a particular level. Erg mode simplifies your workout, so your only job is to manage your cadence. You don’t need to worry about shifting (although it is certainly allowed), or whether you are hitting your wattage target. You just need to keep your cadence where you want it, and the trainer will make sure you’re hitting the target power.
Example: Your Zwift workout interval wants you to hold 200 watts for 10 minutes.
- If you are spinning at a cadence of 90 and putting out 200 watts, then slow your cadence to 60, your trainer will quickly increase resistance so you are still holding 200 watts even though you are pedaling slower.
- If you are spinning at a cadence of 90 and putting out 200 watts, then increase your cadence to 110, your trainer will quickly decrease so you are still holding 200 watts even though you are pedaling faster.
When To Use ERG Mode[]
Use it for workouts where you want to hold particular power levels for particular intervals (which is most workouts). Erg mode is enabled by default if you begin a workout while using a smart trainer in Zwift. While possible, ERG Mode should probably not be used in races or regular rides as it may inhibit your ability to stay with the group.
Setting ERG Mode in Workouts
How to Disable and Enable Erg Mode in Zwift[]

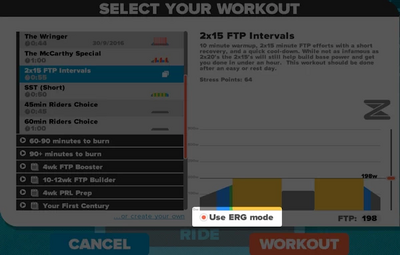

You can disable and enable Erg mode from the workout browser screen by toggling the “Use Erg Mode” button.
You can also turn it on or off during your workout by clicking the up arrow, or clicking your mouse near the bottom-middle of your screen. This will bring up a menu which includes a button for turning Erg on and off. (On iOS or AppleTV swiping up will let you access this menu.)
Lastly, the Companion app has a button to toggle Erg on and off during your workout.
What Gear Should I Use?[]
While Erg mode will work in any gear on your bike with no shifting required, riders often ask what gearing is best. There is no clear “right answer” for everyone, but here are a few things to consider:
- If you want to work on climbing, train in a climbing gear (small ring on the front). This will reduce your trainer’s inertia, mimicking the feel of a low-speed climbing effort where your muscles aren’t able to “coast” as long at the top and bottom of each pedal stroke.
- Train what you race. If you’re training for a particular type of outdoor race, use a gearing that mimics the pedal inertia you’ll be experiencing during the race. So a flat TT might use the big ring and one of your smaller cogs in back (high inertia), while a hill climb race might use the small ring and a big cog in back (low inertia).
- If you ride a lot of Erg workouts, you might consider varying your gearing in order to wear your cassette more evenly. If 90% of your riding is in the same gear, you’ll wear out your cassette prematurely.
- Chain line is always a consideration. Although your trainer and bike may allow it, having a bad chain line will increase drivetrain wear and wattage loss. So if you’re in your big ring in front, try to stay out of your easiest gears in back. And if you’re in your little ring in front, stay out of your hardest gears in back. Try to keep that chain line as straight as possible.
- The lower your trainer’s inertia, the faster it can change resistance between intervals. If your trainer is slow to respond, and/or you’re doing very short intervals, you might consider shifting to the small ring to help your trainer respond more quickly to resistance changes.
- Noise may also be an issue with certain trainer setups. An easier gear (small ring in front) should reduce your overall spinning and thus the overall noise level.
- Shifting is OK: there are times when shifting at the start of certain intervals may make sense.
Spiral Of Death[]
If you understand how Erg mode works, you’ll understand what if often called the “Spiral of Death”. This torturous event happens when you are in Erg mode attempting to hold a particular wattage, then your legs get tired and your cadence slows. In order to keep hitting the wattage target, your trainer will then increase the resistance. This increased resistance naturally slows your cadence even more, which means the trainer piles on more resistance… until you come to a grinding halt.
Feeling the spiral of death beginning? Ramp up your power a bit while shifting to an easier gear so you can raise your cadence. If you’re out of gears, the only way out of the spiral is to push harder, increasing your cadence so the trainer will reduce its resistance.
